Main Power: | 15 kw | Hydraulic Power: | 7.5Kw |
---|---|---|---|
Material: | Galvanized Steel Coil | Thickness : | 1.0~3.0mm |
Roller station: | 18 stations | Speed: | 16~20m/min |
Size: | Approx. 10m*1.5m*1.8m | Weight: | 10 Tons |

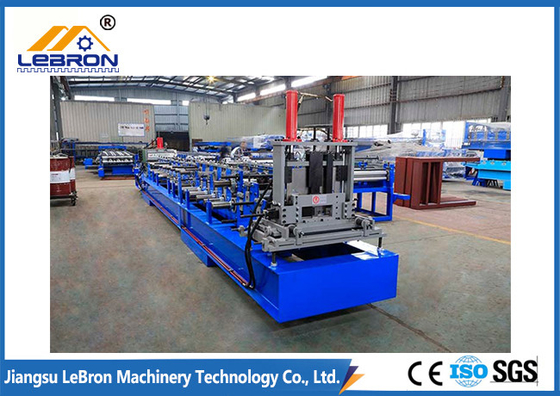

10 Ton Heavy Durbale Fully Automatic CZ Purlin Roll Forming Machine High Capacity
1. Description of CZ purlin roll forming machine
The fully automatic CZ steel integrated machine is also called C/Z interchangeable roll forming machine. It is a high-automatic purlin forming equipment controlled by a PLC computer, which can realize the interchangeable production of C/Z two types and various specifications of purlins in a short time.

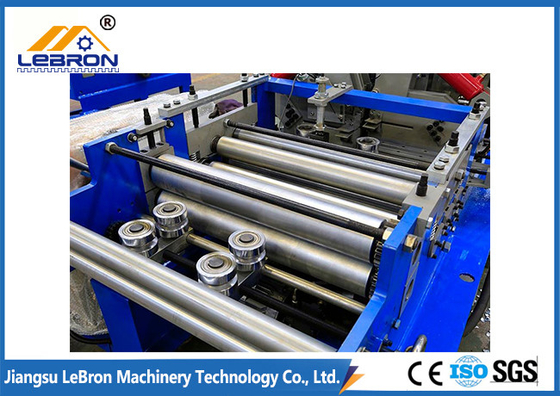

CZ interchangeable purlin roll forming machine consists of a guider, leveling device, 2 hydraulic punching devices, hydraulic cutting device, electric control system, hydraulic system, and so on.
The equipment uses three reducers to fix and rotate the fixed shaft through the sprocket gear to realize the exchange of different types of purlins. The C/Z exchange can be realized by manually rotating the fixed rotating plate.
2. Technical Parameters of CZ Purlin Roll Forming Machine
No. |
Item |
Description |
1 |
Suitable Material |
GI, GL, PPGI, PPGL Coil, Q235 Coil |
2 |
Suitable Thickness |
1.5~3.0mm |
3 |
Roller Station |
16 stations |
4 |
Forming Speed |
8~12m/min (including the punching and cutting) |
5 |
Roller Material |
GCr15 Bearing Steel. Quenched. Hardness: 58~62 HRC |
6 |
Main Motor Power |
15 KW |
7 |
Shaft Material |
Cr40 steel, Tempering, and Quenching |
8 |
Shaft Diameter |
70mm |
9 |
Cutting |
Hydraulic Cutting |
10 |
Blade Material |
C12MoV, Quenched |
11 |
Hydraulic Station Power |
7.5 KW |
12 |
Drive Type |
Single row Chain Drive |
13 |
Machine Size |
10500mmx900mmx1500mm (L*W*H) |
14 |
Machine Weight |
Approx 8 tons |
15 |
Machine Frame |
48mm Thick Plate |
16 |
PLC Control System |
Panasonic |
17 |
Frequency converter |
Yaskawa |
18 |
Encoder |
Omron |
19 |
Servo motor |
Yaskawa |
20 |
Other Electrical Components |
Schneider |
3. Main components of CZ Purlin Roll Forming Machine
No. |
Name |
Quantity |
Remark |
1 |
5Tmanual decoiler |
1 |
As one complete part |
2 |
Guiding device |
1 |
|
3 |
Pre-cutter |
1 |
|
4 |
Forming system |
1 |
|
5 |
Transmission system |
1 |
|
6 |
Hydraulic guillotine |
2 |
|
7 |
Support table |
2 |
|
8 |
Hydraulic station |
1 |
|
9 |
Control box |
1 |
|
10 |
Spare parts and tools |
1 |
As attaching list |
4. Advantages
1). We are a factory with over 10 years of experience in manufacturing Roll Forming Machines;
2). We have our own powerful research and development team
3). We have more than 15 technicians.
4). 5 engineers with more than 20 years of experience
5). We have an advanced Laser Cutting Machine, CNC Machining Center, Polishing Line, Painting Line, etc. This advanced production equipment guarantees the good quality of each part and the appearance of our machines;
6). Our machines have reached International Inspection Standards;
5. Our Service
A. Foreign debugging
If you need it, we will arrange for our professional engineers to help you install and debug the machines well. The buyer should pay $100 per day
B. Guarantee period
The warranty will be a maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by humans are excluded).
C. Training
During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.
6. FAQ:
1. Q: Are you a manufacturer?
A: Yes, we are a manufacturer with over 11 years of experience.
2. Q: If I am new in this field. How could I understand the machine very well?
A: We have a very professional sales team and technology team. We will provide you the detailed introductions by photos, videos, and technical proposals. If you have any questions, we can reply to you in the shortest time.
3. Q: I have no Whatsapp or Skype, how could I contact with you
A: Send one email to me (alfred@lebron-machinery.com). Leave your contact information for me. I will contact you. It is free.
4. Q: How should I do if I would like to order my machine
A: Send us your design drawing if you have any. Or tell us your design idea. we arrange for our engineers to make the drawing for your confirmation first. After every technical detail is confirmed, meantime, we reach an agreement on the price, delivery time, after-sales service, etc. We can sign a contract then
5. Q: Can you use other brands of spare parts for me if I want?
A: Yes. We can.
